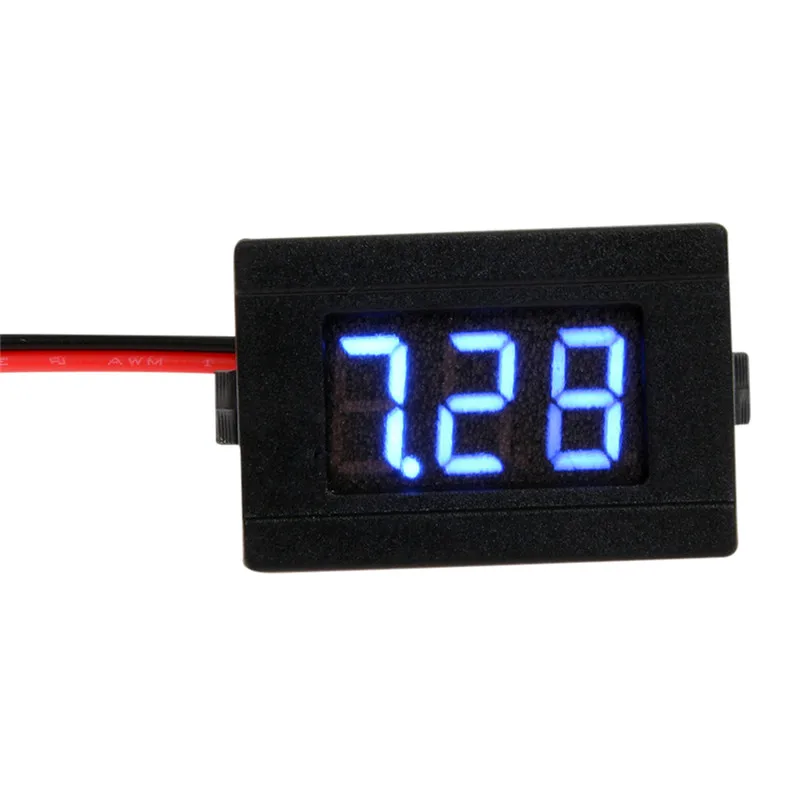

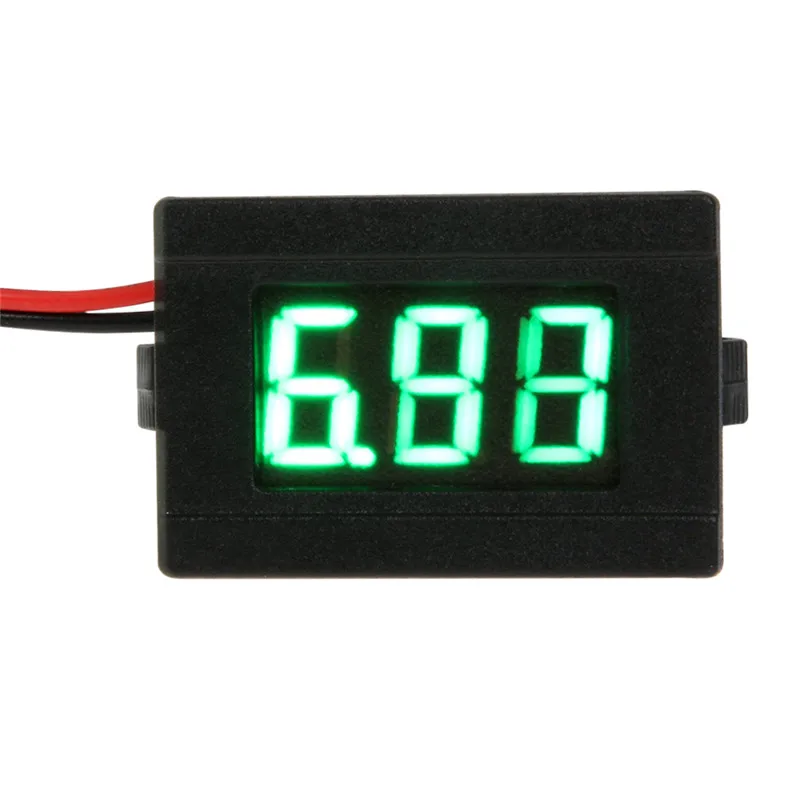

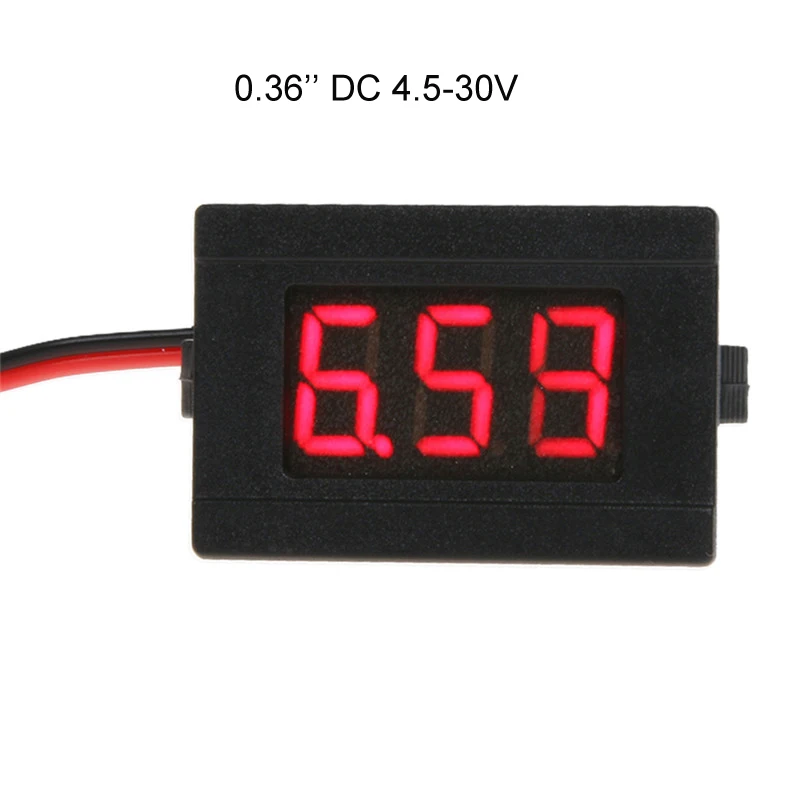

Digital DC Volt voltage Meter Voltmeter 4.5-30V For car battery 0.36" red blue green LED
i have blue and green,1usd/pcs
Features : Size:34X 23X 17mm 1,This voltmeter's wiring is simple,it only need to connect two wires,the red wire is to connected to positive pole,the black wire is to connected to negative pole. There is protection when the wires aren't correctly connected,the electric circuit won't be bumed.
2,4.5-30V.This voltmeter doesn't need external drive working power,it can work with measuring voltage,the working voltage's range is 4.5-30V.
3,To reach the best measurement accuracy,this voltmeter will automatically move the decimal point's position according to the different measuring voltage. When it measures the voltage below 10V,it will display two places after decimal point. When it measures the voltage above 10V,it will display one place after decimal point.
4,This voltmeter can be used to measure the storage battery's voltage in motorcycles and cars and also can grasp the storage battery's status. It also can be used to measure other voltage. NO Reverse Connect Protection Range: DC4.5-30V ( Can Measure Power Supply Directly ) Display: 0.56 "LED digital tube Display color: red Refresh rate: about 200mS / times Input: DC voltage Resolution: 1% +1 digit Power Supply: DC4.5 -30V Operating temperature: -10 ℃ ~ 65 ℃

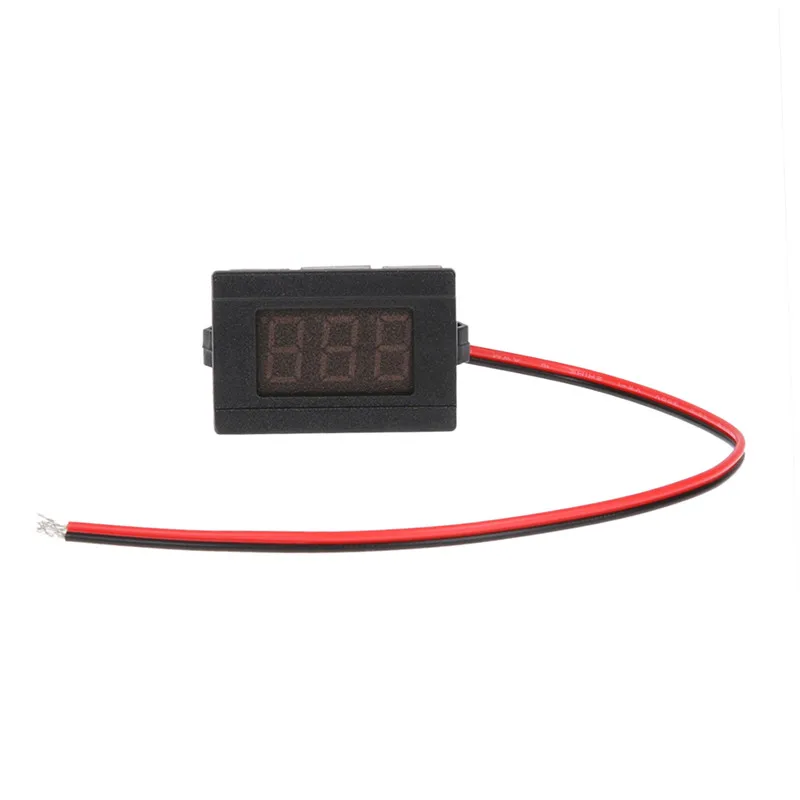

red cable DC+, black cable DC -,
Attention if the Voltage over 30V ,it maybe will burned. 30V is the voltmeter's maximum operating limited voltage,please leave enough margin when working,to avoid voltmeter's permanent damage because of electrical spark ,power supply ripple,or other too high abrupt change of voltage.
2 This voltmeter didn't do moisture-proof,waterproof,shockproof,anti-oil processing,please be careful or handle by yourself when using.
Package 100% Brand New 1 x 4.5V to 30V Voltage LED Mini Digital Panel Meter
