GY-6D Y6 Y6D 12V 24V 36V 48V Digital Acid Lead Lithium Battery Capacity Indicator tester meter 2s-15s

FOB Reference Price:Get Latest Price
$2.70 - $3.10 / Piece | 20 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
GEREE
Model Number:
OM024
Input voltage:
6-65V
Cable length:
30cm
Lithium Battery:
2s-15s
Acid Lead battery:
12V 24V 36V 48V
type:
battery Capacity tester
Supply Ability
Supply Ability:
10000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
polybay,can make the package according to customers' requirements
Port
shenzhen/HK

12V 24V 36V 48V Digital  Acid Lead Lithium Battery Capacity Indicator 2s-15s

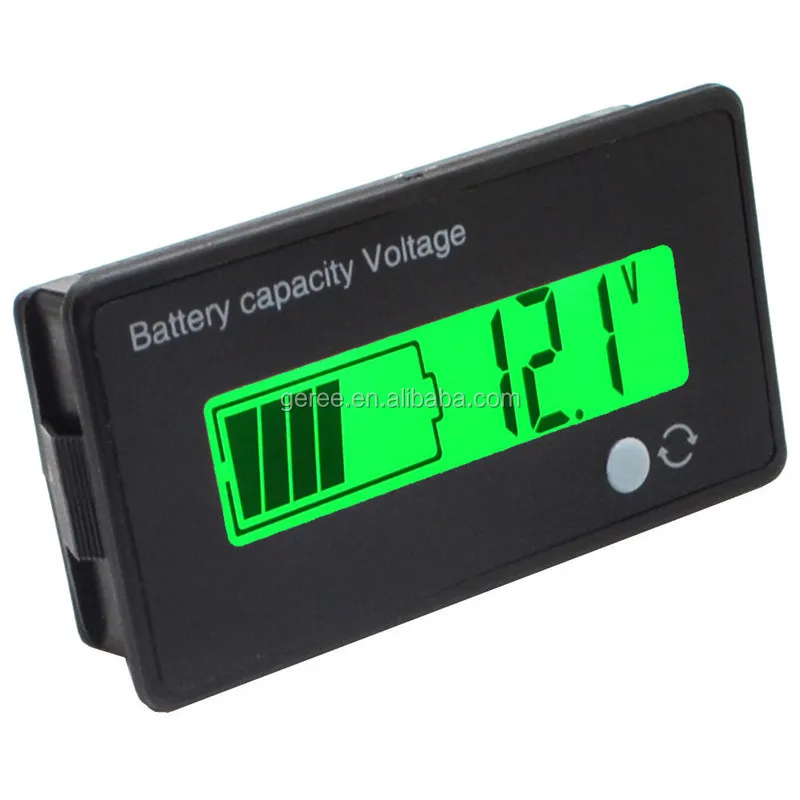

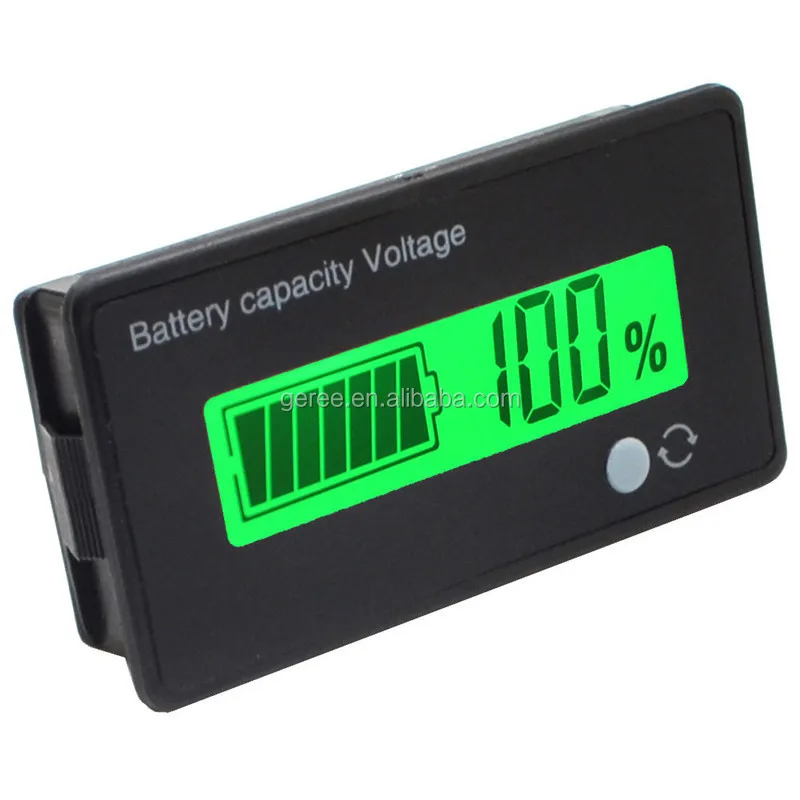

this battery capacity tester can show voltage and percentage.

we have Y6H Y6D Y6S Y6




Specifications:
Display :power, voltage, close the key for cycle
Voltage Range:6-65v, products will display based on the voltage value. voltage fluctuations ,power meter will be follow as the voltage fluctuation (Comes with reverse polarity protection ,can be guarantee use effecively)
The product is suitable for lead-acid 12v.24v.36v.48v.(can be changes via key, specific please see setup instructions as below)
The product is suitable for 3.7v lithium battery 2s-15s (can be changes via key ,detail information please see as below )
Cable length: 30cm

Instructions:
1 Press and hold switch on the product ,power on ,automatically select the interface (please follow as the code corresponds blow)
2.Select your battery type after corresponding ,for example 3 series lithium battery myou need to enter the selection screen ,press the key point to L3 interface ,then off,re-energized,choose success,such as the need to set 12v lead-acid batterise,the key point press to p12v interface ,power ,re-energized, both choose success
3.instruments can be used if you select successful..meter shows the power interface ,tap switch, switch to voltage interface ,click the switch ,turn off the meter ,cycle
shown as the code corresponds

Code:Suitable for

L2: 2 string lithium
L3: 3 string lithium
L4: 4 string lithium
L5: 5 string lithium
L6: 6 string lithium
L7: 7 string lithium
L8: 8 string lithium
L9: 9 string lithium
L10: 10 string lithium
L11: 11 string lithium
L12: 12 string lithium
L13: 13 string lithium
L14: 14 string lithium

L15: 15 string lithium


p12v:12v lead-acid
p24v:24v lead-acid
p36v:36v lead-acid
p48v:48v lead-acid

Special function setting (requires electric iron ,you must power off setting, electric iron must be grounded
A point connection ,the backlight will be automatically shut down if delay 10 seconds,the voltage fluctuation will automatic wake-up exceeds 0.3v/0.5 seconds
B point connection ,lithium choose 3-4.1v curve (lithium professionals)



very easy to use:





package list:

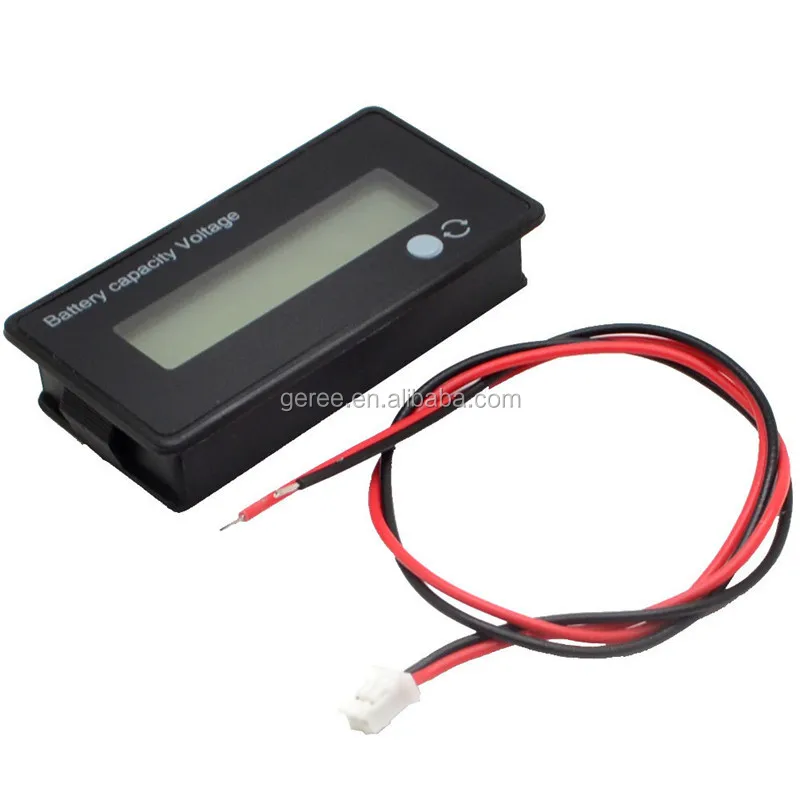

1x battery capacity &volt tester
1x 30cm cable

battey tester
