Geree electric time delay relay module 12V 10A 220v delay Turn on Turn off 1s to 1 hour

FOB Reference Price:Get Latest Price
$1.80 - $3.50 / Piece | 20 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Geree
Model Number:
R024M
Size:
Miniature
Usage:
Protective
Theory:
Time Relay
Protect Feature:
-
Contact Load:
Low Power
size:
52*30*16mm
Application:
widely used
quality:
100% brand new
warranty time:
12 month
full stock:
yes
is customzied:
yes
Type:
time relay
Supply Ability
Supply Ability:
10000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
polybag,or as customer's requirement
Port
shenzhen/HK

Geree electric time delay relay module 12V 10A 220v delay Turn on Turn off 1s to 1 hour



note:we have 5v 9v this relay and can customize 24v

 Note:we have cycle delay relay and Multifunction relay



Description :

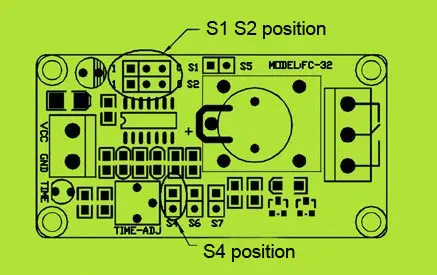

1. With 8 time ranges selected shortest 0.1s most up to 1 hour

 2. Protection against power reversal protection diode, better protection module

 3. Can be accessed by a large current load (250V ac 10A or 30V dc 10A)

 4. With delay adjustment potentiometer clockwise adjustment time longer

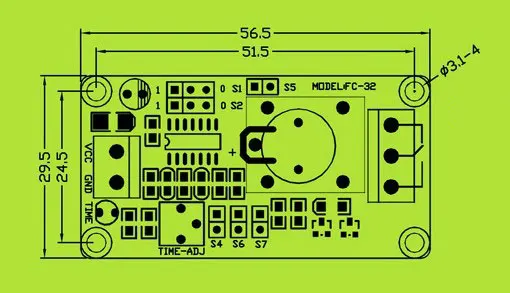

5.size 52*30*16mm



Function:



Plug On S6 ,delay turn off



plug on s7, delay turn on




Electrical parameter:



Input voltage: 12V



Quiescent dissipation: 5.5mA



Maximum power consumption:42mA

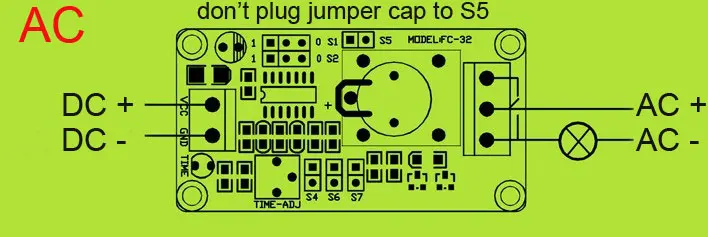

Relay load capacity:



250V 10A AC (2500W ideal power AC)



30V 10A DC (300W ideal power DC




realy module
